FNIRSI LC1020E Handheld Digital Bridge LCR Meter, Automatic L/C/R Measurement
The high-precision portable LCR meter is a tool for testing electronic components, combining high precision, portability, and intelligent features. Designed for engineers, technicians, and electronics enthusiasts, it meets the precision measurement requirements of various scenarios, including laboratories, production lines, and field maintenance.
Equipped with a 2.8-inch HD TFT color display, it supports multiple parameter combinations such as L/Q, C/D, and R/D measurements and is compatible with reputable/parallel equivalent circuit models. Preset threshold values enable rapid identification of good/bad components, while audio and visual prompts significantly improve batch testing efficiency, facilitating efficient sorting and quality control.
... With a maximum test frequency of 100 kHz, it can easily handle high-frequency parameter analysis of components such as inductors, capacitors, and resistors, thus covering a wider range of applications. The compact housing, combined with a long-lasting battery, eliminates the need for cables, allowing you to easily carry it in your pocket and take precise measurements anytime, anywhere.
Key Features:
1. High Precision and Wide Measurement Ranges: The LC1020E delivers a basic accuracy of 0.3%, ensuring reliable and precise measurements for professional use. It supports a wide measurement range for inductance (0–100 ohms), capacitance (0–100 mF), and resistance (0–10 MΩ), making it suitable for a variety of components.
1. High Precision and Wide Measurement Ranges: The LC1020E delivers a basic accuracy of 0.3%, ensuring reliable and precise readings for professional use. 2. Multi-frequency and selectable test levels: With five selectable test frequencies (100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz) and three test levels (0.1 V, 0.3 V, 0.6 V), this LCR meter offers the flexibility to accurately analyze component characteristics under various conditions, from general-purpose testing to high-frequency parameter analysis.
3. Dual test ports for versatility and accuracy: The instrument features both a convenient three-port test jack for quick, everyday measurements and a five-port test slot. The five-port configuration enables full Kelvin measurement with four ports and professional test fixtures, ensuring maximum accuracy by minimizing line impedance errors.

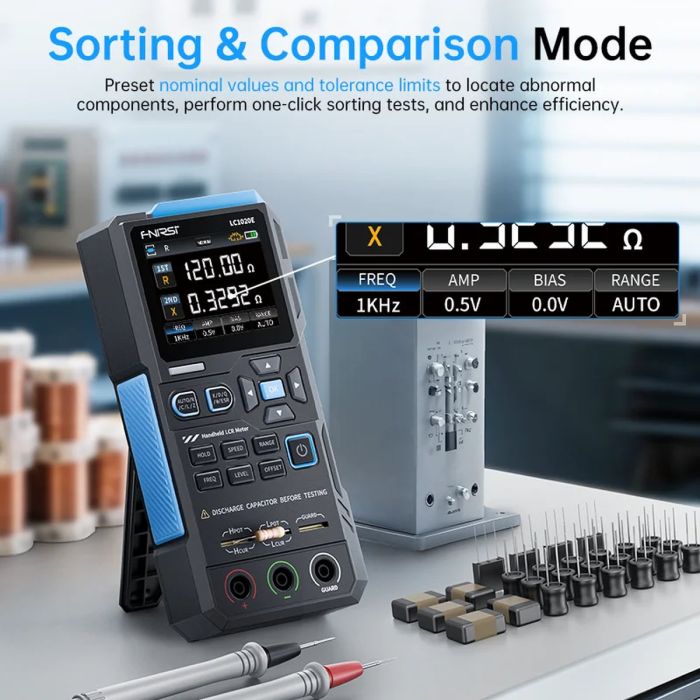

3. Dual test ports for versatility and accuracy: The instrument features both a convenient three-port test jack for quick, everyday measurements and a five-port test slot. 4. Intelligent Component Sorting and Data Logging: Significantly increase the efficiency of your batch tests with the intelligent comparison function. Set a nominal value and a reference range (0.1%–99.9%) to automatically sort components, with audiovisual feedback for pass/fail results. The data logging mode records the number of successful and failed measurements for effective quality control.
5. Portable Design with Clear Display and Long Battery Life: Designed for use in the lab, on the production line, and in the field, the LC1020E features a compact body and a powerful 3.7V 3000mAh rechargeable lithium battery. The large 2.8-inch TFT color screen clearly displays all primary and secondary parameters (L/C/R/Z, X/D/Q/θ/ESR), making it easy to read measurements anywhere.
1. Display: 2.8-inch TFT LCD display
2. Basic accuracy: 0.3%
3. Display digits: Main parameter: 4.5 digits; Secondary parameter: 4.5 digits
4. Test frequency: 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz
5. Test level: 0.1 V, 0.3 V, 0.6 V
6. Internal reserves: 0.0 V, 0.5 V
7. Measurement parameters: Main parameter: AUTO/R/C/L/Z; Secondary parameters: X/D/Q/θ/ESR
8. Measuring range: L: 0-100H, C: 0-100mF, R: 0-10MΩ
9. Measuring speed: Fast (4 times/s), Medium (2 times/s), Slow (1 time/s)
10. Calibration functions: Open circuit calibration, Short circuit calibration
11. Comparison function: Used to calculate the relative error between the component measurement and the nominal value, displayed as a percentage and providing filter results. Nominal values and tolerance can be set, with a tolerance range of 0.1% to 99.9%.
12. Recording function: Verifies whether the measured component data corresponds to the set nominal value and tolerance and records the number of successful and failed measurements.
13. Test terminal configuration: Three-terminal, five-terminal
14. Output impedance: 100 Ω
15. Communication interface: USB Type-C (Virtual Serial Interface)
16. Other functions: Language settings, screen brightness, sound settings, auto power-off, calibration settings, system information.
1. LC1020E LCR Meter
2. Data cable
3. Shorting plate
4. Kelvin test clip
5. Test leads (black + red)
6. User manual
